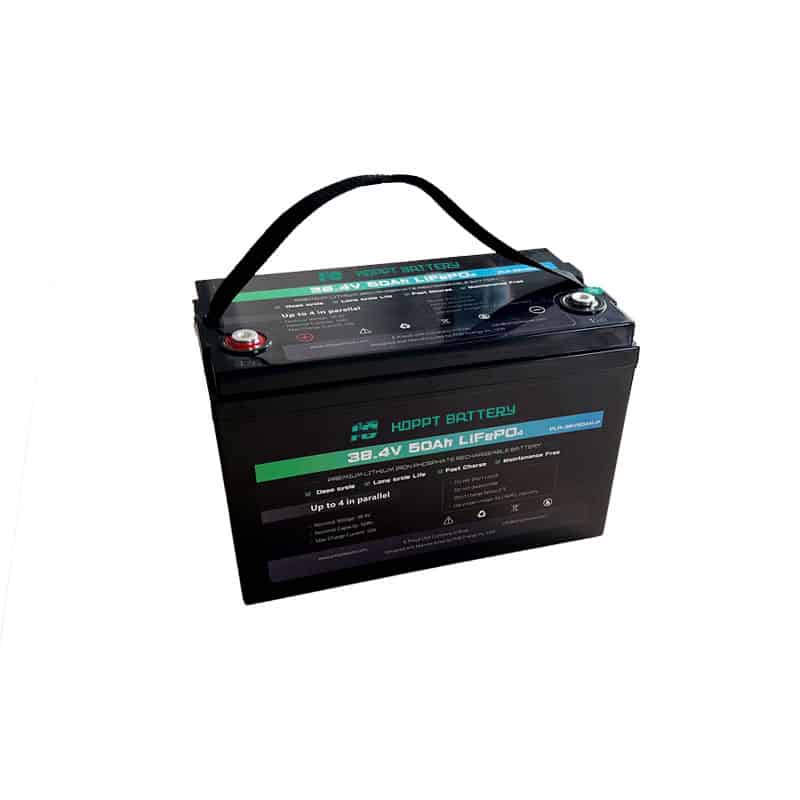

HB 36V 50Ah Lithium Battery Pack Lithium Iron Phosphate Battery

HB-lithium-battery-pack-36V-50Ah
HB-lithium-battery-pack-36V-50Ah
HB-lithium-battery-pack-36V-50Ah
arrow_right
arrow_right

Overview&Features

Lithium battery pack refers to the output of one or more lithium batteries plus a battery protection board with specific functions. Lithium battery packs consist of multiple cells to form a single physical module that provides higher voltage and capacity. For example, a battery module uses four cells in series to give a nominal 12V voltage or multiple cells. The parallel connection provides greater power—lithium battery components connected in series and parallel. Parallel battery packs require that each battery have the same voltage, and the output voltage is equal to the voltage of one battery. Parallel battery packs can provide stronger current. There are no excessive requirements for series battery packs, as long as the batteries are guaranteed. The capacity of the battery pack is about the same. The series battery pack can provide a higher voltage. A more complete lithium battery pack protection function should be composed of two modules: to protect the circuit substrate, and the other is to judge the substrate intelligently.

Get A Quote icon_btn_quote

Hoppt product’s safety performance is comfirmed to

  • UL1642 standard.No leakage, capacity Recovery rate:³ 90% (storage 3h)
  • No explode, no fire, no  leakage.
  • Avoid insolation or dropping into fire.
  • Avoid shorting the battery.
  • Avoid excessive physical shock or vibration.
  • Don’t disassemble or deform the battery.
  • Don’t immerse in water.
  • Don’t use the battery mixed with other model or manufacturer batteries.
  • Battery charge should be used appropriate charger.

Specification

Electrical Parameter

Rate voltage 38.4V
Rate capacity 50AH
Energy 1920Wh
Cycle life > 3000 cycles 80% DOD

Operating Parameter

Charge voltage 42.6V
Charge current 25A
Max.Charge current 50A
Discharge cut-off voltage 30V
Discharge current 25A
Max.Discharge current 50A
Max.Pluse Discharge current(<0.3S) 150A
Discharge temperature -20~55℃
Charge temperature 0~55℃
Storage temperature -10~45℃

Optional Items

Display LCD / Bluetooth

Manchanical Parameter

Terminal M8
Weight 16KG
Dimension(Wx D x H)mm 330x173x215
Protection IP67

Standard

Certification CE

Applications

  • Lead acid replacement battery
  • solar storage battery
  • electric boat battery
  • golf cart battery
  • outdoor power supply
  • etc
