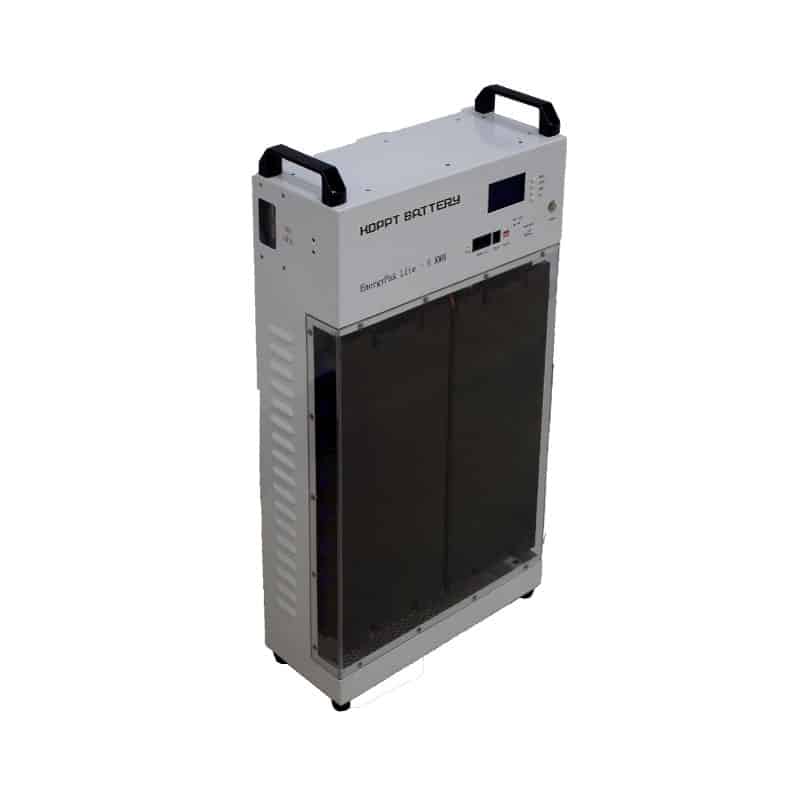

HB 10kw Family Energy Storage System Lithium Iron Phosphate Battery

HB-HES-10KW
HB-HES-10KW
HB-HES-10KW
arrow_right
arrow_right

Overview&Features

The household energy storage system is similar to a miniature energy storage power station, and its operation is not affected by the city's power supply pressure. During the low power consumption period, the battery pack in the household energy storage system can be self-charged to be used in the case of standby power peaks or power outages. In addition to being used as an emergency power source, home energy storage systems can also save household electricity costs because they can balance the electrical load.

Get A Quote icon_btn_quote

Hoppt product’s safety performance is comfirmed to

  • UL1642 standard.No leakage, capacity Recovery rate:³ 90% (storage 3h)
  • No explode, no fire, no  leakage.
  • Avoid insolation or dropping into fire.
  • Avoid shorting the battery.
  • Avoid excessive physical shock or vibration.
  • Don’t disassemble or deform the battery.
  • Don’t immerse in water.
  • Don’t use the battery mixed with other model or manufacturer batteries.
  • Battery charge should be used appropriate charger.

Specification

Basic Parameters

Rated Capacity 200Ah
Rated Voltage 51.2V (Iron-Lithium 16 series), upper limit 58.4V, lower limit 40V
Charging Voltage 51.2V
Rated Energy 10KWH
Rated Capacity 200Ah
Rated Energy 9.6Kwh
Standard Charging CC-CV mode
Current 0.3C
End current 0.05C
End voltage 40V
Maximum Discharge Power 20KW;120S
Weight Customizable
Operating Temperature Range -10℃~55℃
Communication Method 485/CAN Communication
Service Life 2500cycles
Dimensions (mm) Customizable

Applications

  • Data Center
  • Communication
  • Home Energy Storage
  • Distributed Energy Storage
  • Photovoltaic Energy Storage
