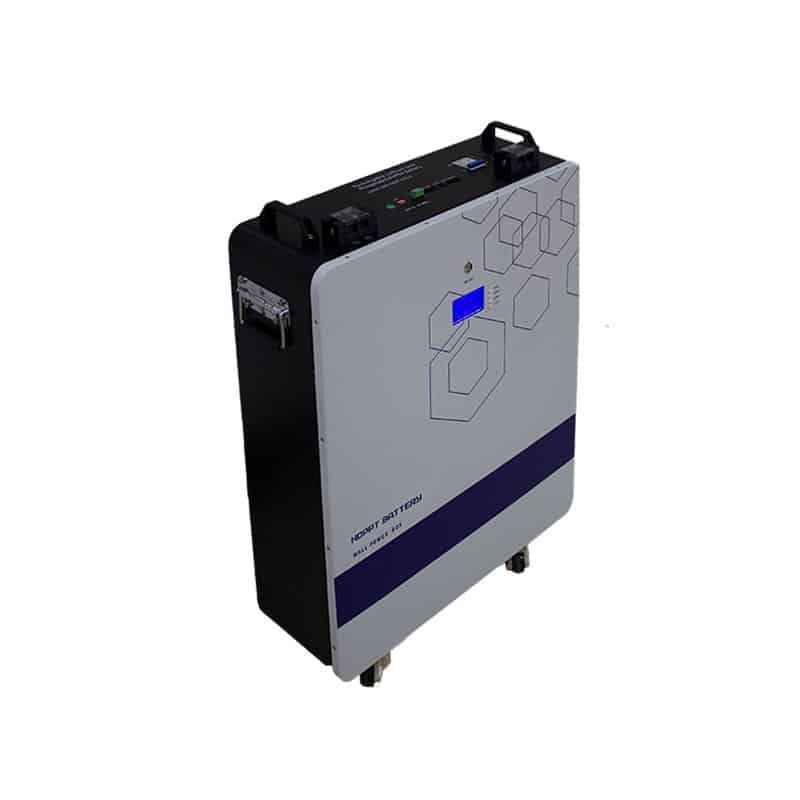

HB Household Energy Storage Battery 51.2V 200Ah 10Kwh

HB-HES-51.2V-200Ah
HB-HES-51.2v-200Ah
HB-HES-51.2v-200Ah
arrow_right
arrow_right

Overview&Features

The household energy storage system is similar to a miniature energy storage power station, and its operation is not affected by the city's power supply pressure. During the low power consumption period, the battery pack in the household energy storage system can be self-charged to be used in the case of standby power peaks or power outages. In addition to being used as an emergency power source, home energy storage systems can also save household electricity costs because they can balance the electrical load.

Get A Quote icon_btn_quote

Hoppt product’s safety performance is comfirmed to

  • UL1642 standard.No leakage, capacity Recovery rate:³ 90% (storage 3h)
  • No explode, no fire, no  leakage.
  • Avoid insolation or dropping into fire.
  • Avoid shorting the battery.
  • Avoid excessive physical shock or vibration.
  • Don’t disassemble or deform the battery.
  • Don’t immerse in water.
  • Don’t use the battery mixed with other model or manufacturer batteries.
  • Battery charge should be used appropriate charger.

Specification

Electrical Parameter

Rate voltage 51.2V
Rate capacity 200AH
Energy 10240Wh
Cycle life > 4000 cycles 80% DOD
Internal Impedance <50 mΩ
Designed life 10 Years

Operating Parameter

Charge voltage 56.8V
Charge current 100A
Max.Charge current 100A
Discharge cut-off voltage 40V
Discharge current 100A
Max.Discharge current 100A
Discharge temperature -20~55℃
Charge temperature 0~55℃
Storage temperature -10~45℃

Function items

Parallel connection Max 15P
Communication port RS485 / CAN / Dry contact
SOC display LED
Display LCD

Manchanical Parameter

Terminal M8
Weight 90KG
Dimension(Wx D x H)mm 574x188x765
Protection IP30

Standard

Certification CE

Applications

  • Solar
  • Household Energy Storage Battery
