Car battery connector types in the market today

05 Jan, 2022

By hoppt

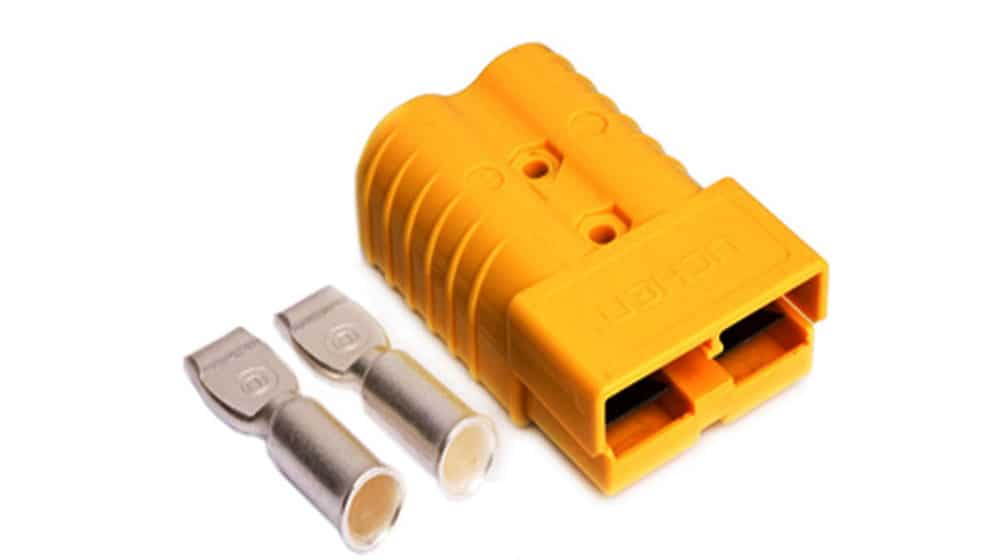

Car battery connector

Do you have any idea about the connectors, terminals, and battery lugs? We'll answer these questions, and that's just the tip of the iceberg; keep browsing!
What is the difference between terminals and lugs?

We are often asked the question: "Can the battery lugs and battery terminals be replaced?" They are pretty much the same: they firmly connect the battery cable to the battery case. For batteries, the area of the posts or posts can be unique. That is what brings us to the fundamental difference between carrying a battery and its terminals: how they are used. Battery lugs are used to connect the battery cable to the solenoid or starter pin. Battery terminals are most commonly used to connect a battery cable to a battery, often found in automotive or marine applications. Battery traction systems are regularly used for more significant power consumption or installation applications. It would help if you had both negative and positive terminals for proper connection for the battery terminals.

Terminal types

Auto Mail Terminal (SAE Terminal)

It is the most common type of battery terminal, and anyone who has replaced a battery in a car will no doubt remember it. Another terminal you'll find is known as Pencil Post. Compared to the SAE Pencil Post terminal, it is more modest.

Hairpin Terminal

It is a 3/8 inch hardened steel threaded clamp for attaching and holding a terminal transfer terminal connection to the lead terminal base.

Double post terminal/sea terminal

This type of terminal has an automotive post and stud. You may link using a conventional pull-down terminal or a ring terminal and wing nut connection.

Terminal button

They are also called embedded terminals. You will find these terminals M5 to M8, which indicates the size of the bolt thread diameter measurement. These terminal types are most commonly found in absorbent glass mat batteries used in emergency protection and uninterruptible (UPS) systems.

Terminal AT (double terminals type SAE / studs)

They are commonly found in traction-type batteries used in heavy-duty cycling applications such as floor scrubbers and self-contained solar panels. This type of terminal has a carport and a hairpin.

Battery Handpiece Types

Lugs made of copper
Tinned copper lugs
Copper transportation is considered by many to be the business-standard. They are great for considerable power or installation verification applications. The terminals are incredibly flexible and can be attached or crimped onto the battery cable for the most secure connection. Some stores offer right angles, 45 ° copper lugs. The design resistance of copper is excellent for saving stacking space and for added flexibility.

Another popular solution for transporting batteries is tinned copper lugs. They are similar in development to standard copper rods and are tin-plated. This coating stops decay in its path. Using tinned copper in your application protects against consumption from the outset. Tinned lugs are additionally sealed or crimped like standard copper lugs and are presented at various points. In case your application will operate in more harsh environments, a tinned copper plate is your most ideal solution.
