Home / Products / Lithium Polymer Battery / HB 654677 3.7V 2500mAh Lithium Polymer Battery

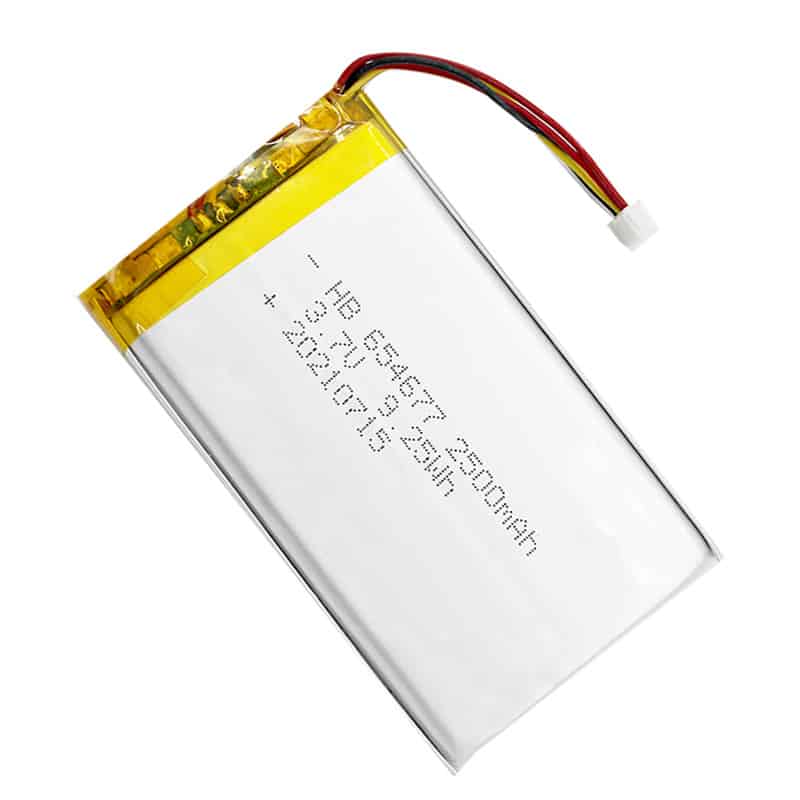

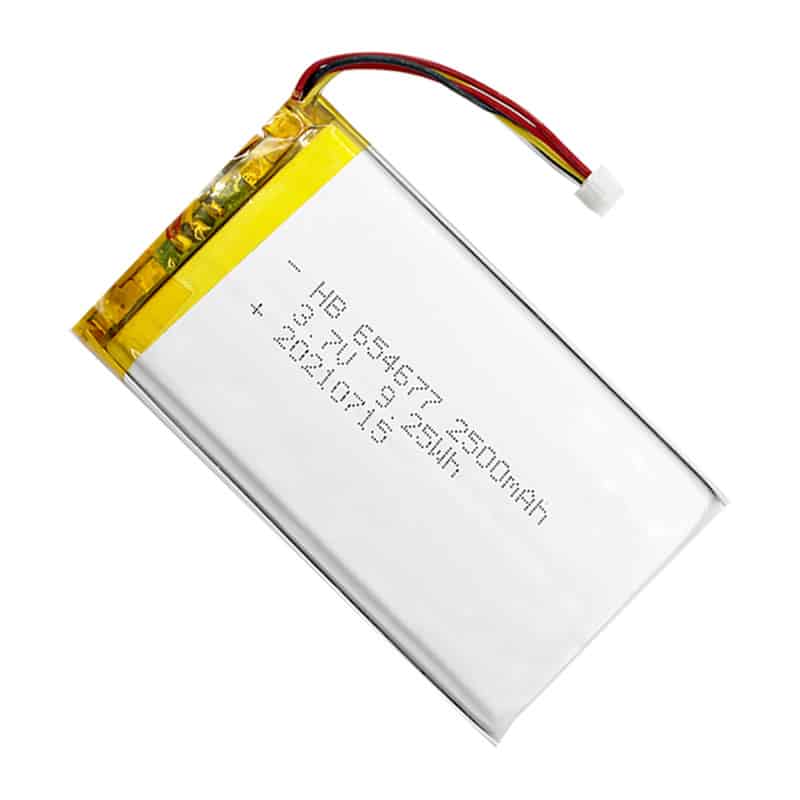

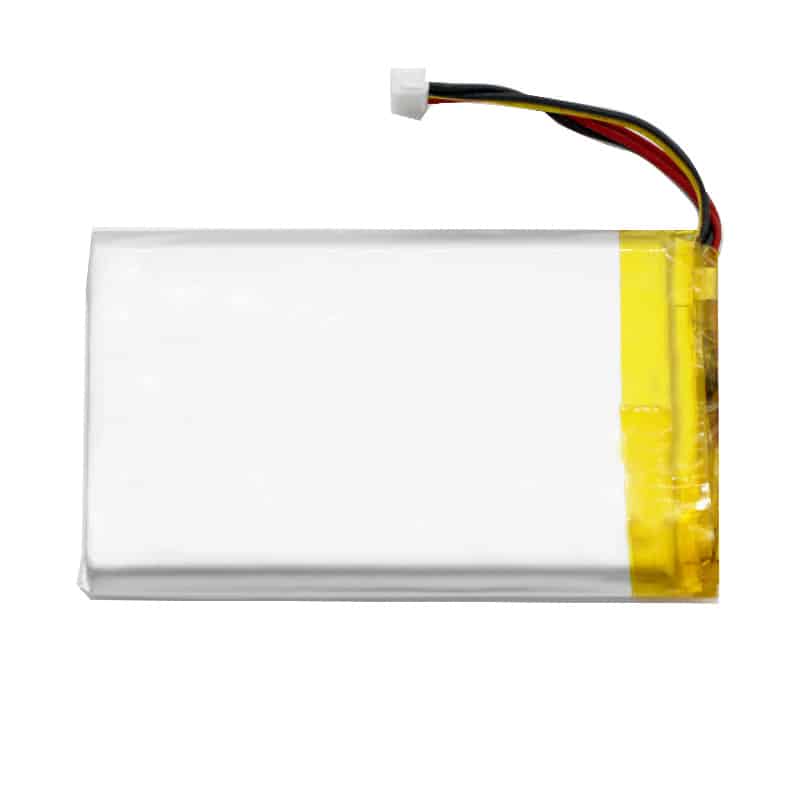

HB 654677 3.7V 2500mAh Lithium Polymer Battery

HB 654677 2500mAh 3.7V 9.25Wh
HB 654677 2500mAh 3.7V 9.25Wh
HB 654677 2500mAh 3.7V 9.25Wh
HB 654677 2500mAh 3.7V 9.25Wh
arrow_right
arrow_right

Overview&Features

Lithium polymer battery, or more correctly lithium-ion polymer battery is a rechargeable battery of lithium-ion technology using a polymer electrolyte instead of a liquid electrolyte. High conductivity semisolid (gel) polymers form this electrolyte. These batteries provide higher specific energy than other lithium battery types and are used in applications where weight is a critical feature, such as mobile devices, radio-controlled aircraft and some electric vehicles.
LiPo cells provide manufacturers with compelling advantages. They can easily produce batteries of almost any desired shape. For example, the space and weight requirements of mobile devices and notebook computers can be met. They also have a low self-discharge rate, which is about 5% per month.

Get A Quote icon_btn_quote

Hoppt product’s safety performance is comfirmed to

  • UL1642 standard.No leakage, capacity Recovery rate:³ 90% (storage 3h)
  • No explode, no fire, no  leakage.
  • Avoid insolation or dropping into fire.
  • Avoid shorting the battery.
  • Avoid excessive physical shock or vibration.
  • Don’t disassemble or deform the battery.
  • Don’t immerse in water.
  • Don’t use the battery mixed with other model or manufacturer batteries.
  • Battery charge should be used appropriate charger.

Specification

ELECTRICAL

Nominal capacity 2500mAh
Min. Capacity 2500mAh
Cell Initial Impedance ≤ 150mΩ
Cycle life >300 (at 0.5C discharge)
Normal Voltage 3.8V
Initial Voltage ≥4.0V

MECHANICAL

Battery pack Thickness max. 7mm
Battery pack Width max. 48
Battery pack Height max. 79
Pack Impedance ≤200mΩ
Cell type Lithium polymer battery

TEMPERATURE

Discharge Temperature 0~ 60℃
Charge Temperature 5~ 50℃
Limited Charge Voltage 4.35 V
Cut-off Voltage 2.8V
Standard Charging Method 0.2C CC current charge to 4.35V, then CV charge till current declines to

0.01C

Operating humidity Range ≤ 90%RH

HEATING ELEMENT

Standard Charging Current 0.2C
Standard Charging Time 6~7 hours
Rapid Charging Current 0.5C
Rapid Charging Time 约3.5hours
Standard Discharging Current 0.2C
Max. Discharging Current 1C

Applications

  • Backup Power
  • Electric Vehicles
  • Marine
  • Recreational vehicles
  • Solar
